Version 3 Generations
Home
Manuals
Stage 2
Manuals
Version 3 Generations
Select your Controller Generation for the appropriate Manual

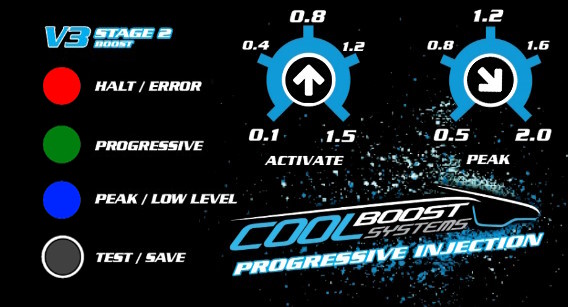

1st Generation
(2018-2019)
Download Manual
- Identifiable
by Wrap Around Sticker
- Boost or Voltage interfacing based on purchase selection
- Only available in 2Bar Boost Range (if Boost selected)
- Features enabled as per purchase selection such as:
- Pre-Pressurization
- Status LED or Boost Safe Output
- No configurable to enable or disable features

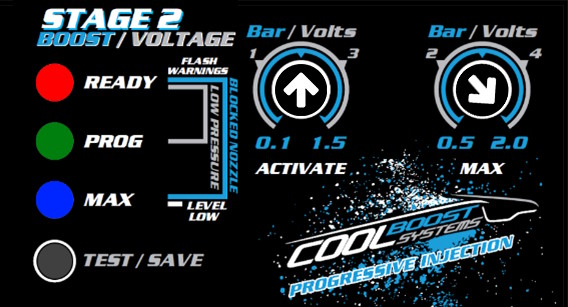

2nd Generation
(2020-2021)
DOWNLOAD MANUAL
- Identifiable by Wrap Around Sticker (change to V1)
- Selectable between Boost or Voltage Interfacing
- Only available in 2 Bar Boost Range
- Blocked Nozzle Detection Features added
- Menu added to enable or disable features such as
- Pre-Pressurization
- Status LED or Boost Safe

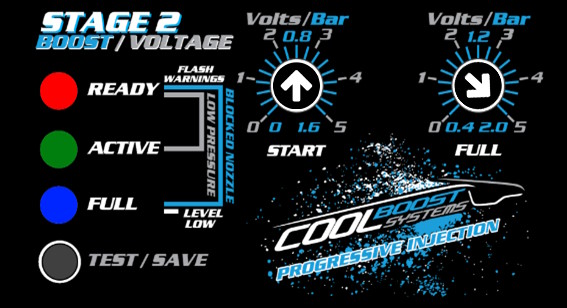

3rd Generation
(2021-2022)
DOWNLOAD MANUAL
- Identifiable by artwork printed to Casing
- More accurate Dual Scale for Voltage and Boost
- 3 Bar Boost variant available based on purchase selection
- Menu Position indication changed to flash counts
- Nozzle Staging Feature added to Menu Position 3
- Menu Position 4 now Boost / Voltage Interfacing Selection
- Improved Blocked Nozzle Detection Code

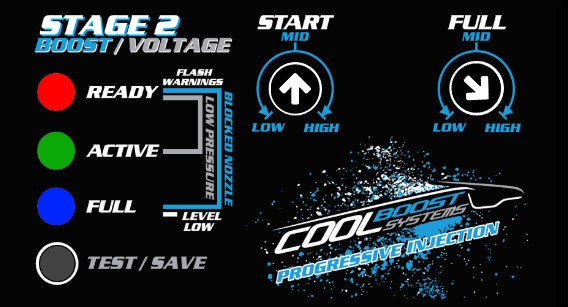

4th Generation
(2022 Onwards)
DOWNLOAD MANUAL
- Identifiable
by artwork printed on Casing (change to Gen 3)
- All units are now capable of 3 Bar / 45PSI Pressure Range
-
Universal Approach with Single Scale for Boost or Voltage
- Selectable between 1Bar, 2Bar, 3Bar or Voltage Scaling
-
Aux Output LED Flash on startup to indicate Boost Scale
- Aux Input upgradable to be an additional Solenoid Output
- Faster Processor for better Performance and response
